Sherex Rivet Nuts
Blind Rivet Nuts provide load-bearing threads in thin sheet materials that are too thin for a tapped thread. They are called "blind" because they can be installed from one side of the work piece. Once the rivet nut is installed, additional components can be attached using threaded fasteners.


What is Industrial Skin Craft?
Huyett Industrial Skin Craft
Rivet nuts are designed to provide strong load-bearing threaded connections in thin gauge materials, or “skins,” when threading is not an option. With the advent of newer materials that reduce product weight or increase strength, designs for “skinning” industrial and commercial objects have become ever more sophisticated. Industrial skinning has become a craft, and G.L. Huyett is well-positioned to support the supply chain for industrial skin craft.
RIVET NUTS ARE USED IN A VARIETY OF INDUSTRIES:
  • Automotive
  • HVAC
  • Aerospace and Defense
  • Electronics
  • Medical
  • Railways
  • Agricultural Equipment
  • Construction Equipment
  • General Industrial
  • Heavy Truck
  • Solar
  • Wind Power
ADVANTAGES OF RIVET NUTS
  • Provides a strong thread in thin materials
  • Ideal for easy disassembly and reassembly of products
  • Installed in a variety of materials: steel, plastic, fiberglass, and more
  • Once installed, additional threaded components can be attached
  • Prepainted material not damaged during installation
  • Ideal replacement for weld nuts:
    • More efficient, simple installation
    • Will not distort base material
    • Eliminate weld spatter, toxic fumes, and other by-products of the welding process
Installed Rivet Nut

INCH/IMPERIAL BODY STYLES
  • Inch drill/punch with metric or inch threads
  • Common in the American marketplace
  • Parts are manufactured to:
    • Sherex, Taiwan: IATF 16949:2016 or ISO 14001
    • Sherex, Akron: AS9100 or ISO 9001:2015
METRIC/EUROPEAN BODY STYLES
  • Metric drill/punch with metric or inch threads
  • Parts are manufactured to:
    • Sherex: IATF 16949:2016, AS9100, or ISO 9001:2015
    • Dejond, Belgium: EN 9100

CHOOSING THE CORRECT PART:
Choosing the correct part
CHOOSING THE CORRECT PART:
Attribute
Description
Styles
Material/Finish
Multiple options available to provide strength and corrosion resistance in your application.
Steel, Stainless Steel, and Aluminum
Zinc Clear, Zinc Yellow, Passivated, or Cadmium
Body Styles
Different styles and duties accommodate installation and production needs. Closed end rivets provide a contamination barrier.
Round: Smooth or Knurled
Hexagonal: Full Hex or Semi-hex
Slotted: Straight or Pre-bulbed
Swaged: Smooth or Diamond Knurled
RIV-FLOAT®: Standard or Short
Thread Size
The most common thread sizes available to add strong threads in thin materials.
Inch or Metric
Grip Range
Get the proper fit on any material with multiple grip ranges.
Common thicknesses available for each application
Flange/Head Size
The head/flange provides push out resistance based on application need.
Large flange or Small flange
Overall Length
Various lengths available to fit your specific application need.
Common lengths available for each application

Rivet Nut Catalog Attributes
CATALOG ATTRIBUTES
GR
Grip Range/Material Thickness
L
Length
HD
Head Diameter
HT
Head Thickness
D
Diameter
IL
Installed Length

INSTALLATION
  • Attach the installation mandrel on the tool
  • Place fastener in the hole and install
  • Remove the installation mandrel
  • Align mating component and attach with conventional hardware
Rivet Nut Installation
INSTALLATION TOOLS
  • Hand Tools - Powered by hand. Good for small production and prototyping.
  • Pneumatic Tools (Spin-Spin) - Powered by air pressure. Styles: pistol grip;right angle; in-line styles
  • Hydro-pneumatic tools (Spin-Pull) - Powered by air pressure and hydraulic fluid. Best for heavy-duty rivet nuts where higher installation force is required.
    • Pull to Pressure: Pulls to a set pressure. Ideal for parts with variable material thickness.
    • Pull to Stroke: Pulls to a set distance. Ideal for uniform material thickness or when installation pressure may deform the material.

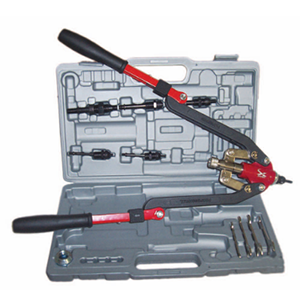

Hand Tools
Hand Tools

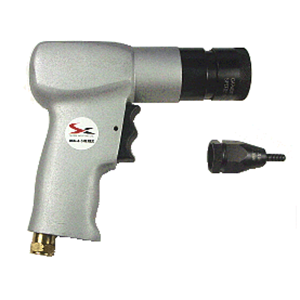

Pneumatic Tools
Pneumatic Tools

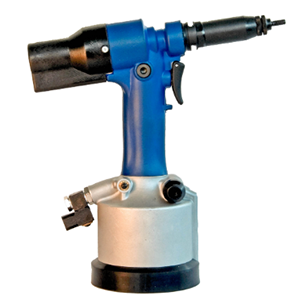

Hydro-Pneumatic Tools
Hydro-Pneumatic Tools
